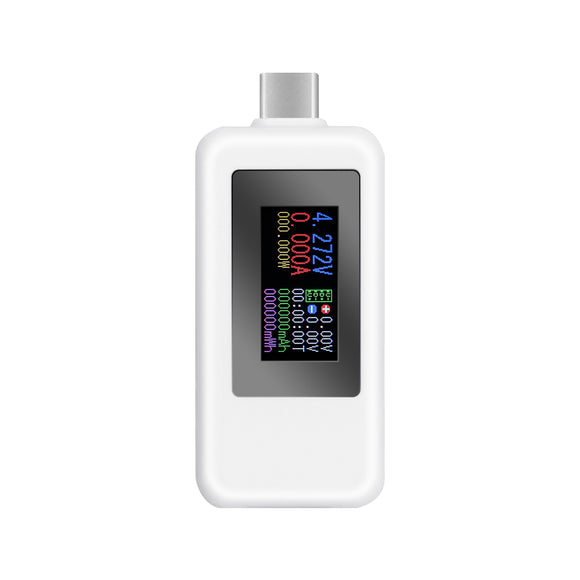

USB C Power Meter Tester for Type C Device-White(KWS-1902C)

mc-010438

unbrand

  • $5.27


Description:
-This bi-direction Type-C multimeter has 0.96 inches color LCD display, on which real-time detection of the charging status, voltage, current, capacity, energy and power. Monitor the charging status and protect the charging equipment.
-Results display up to 3 digitals. More details and accurate.
-Single button operation. Easy to use. No driver required. Plug and play.
-The charging data can be saved even after the power is off, which is very convenient for you to monitor the data.
-Support the identification of QC2.0, QC3.0, PD, and Type-C interface fast charging protocols.
-Compatible with USB-C laptops, mobile phones, power banks, charging plugs, etc.
-Compact and lightweight. Easy to carry around.

Specifications:
-Display Size: 0.96 inches Color Display
-Input Voltage: 4-30V
-Input Current: 0-5A
-Input Power: 0-150W
-Timing: 0-99 hours
-Capacity Measurement Range: 0-999999mAh
-Energy Measurement Range: 0-99999mWh
-Load impedance Measurement Range: 1¦¸-9999.9¦¸
-Temperature Measurement Range: 0-80¡æ
-Voltage Measurement Resolution: 0.001V
-Current Measurement Resolution: 0.0001A
-Size: 5.5 x 2.6 x 1.1 cm

How to Use:
-Single click to view different sets of charging data
-Double click to rotate the screen to view
-Press and hold for 3s to remove a set of data

How to calibrate:
-Press the button before inputting the 5V standard voltage until "Factory Setting" is displayed.
-Release the button. Calibration is completed.


NOTE:
-Do not exceed the voltage and current range when using.
-This fast charge protocol identification mode is for reference only as the mobile phone update is faster and cannot be accurately identified.

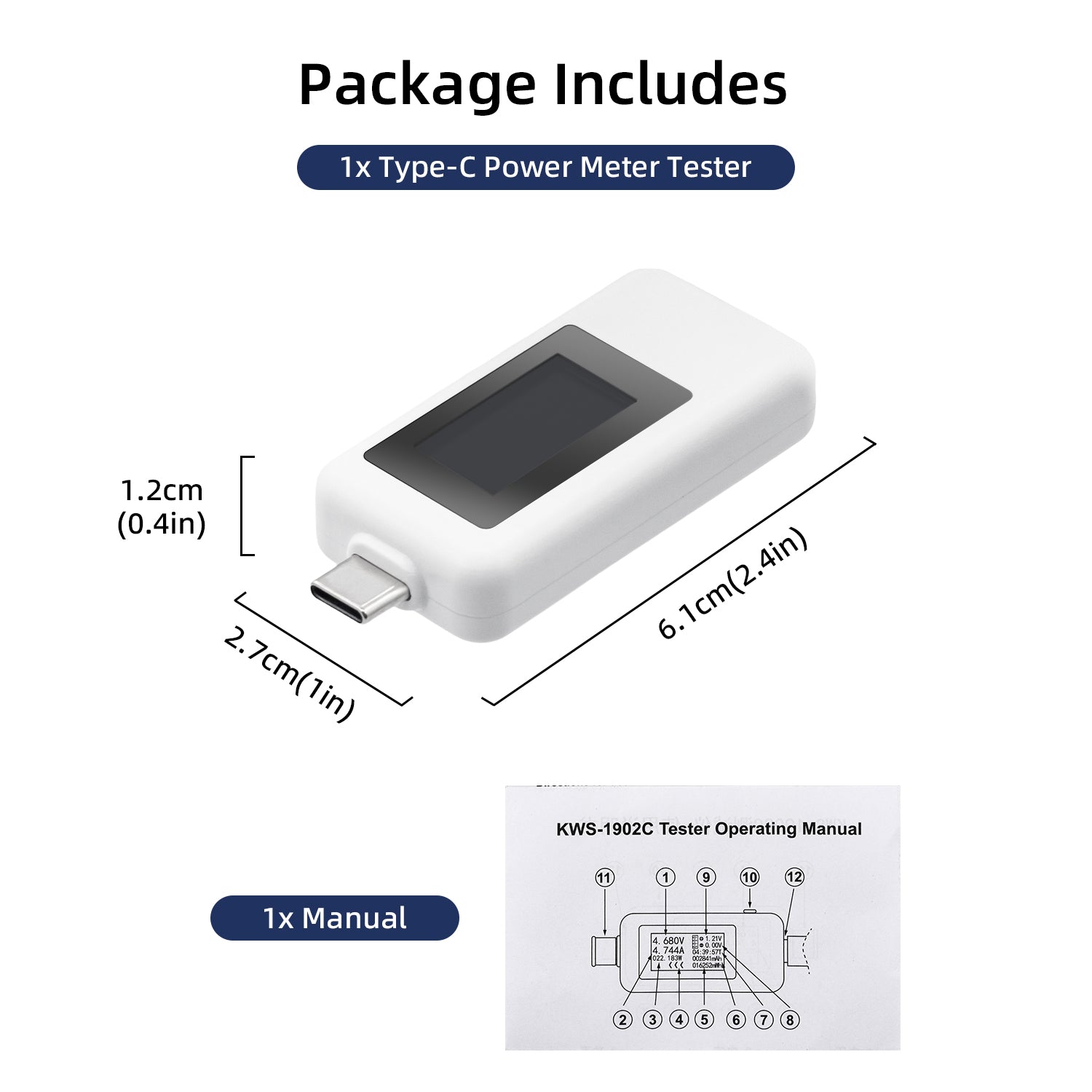

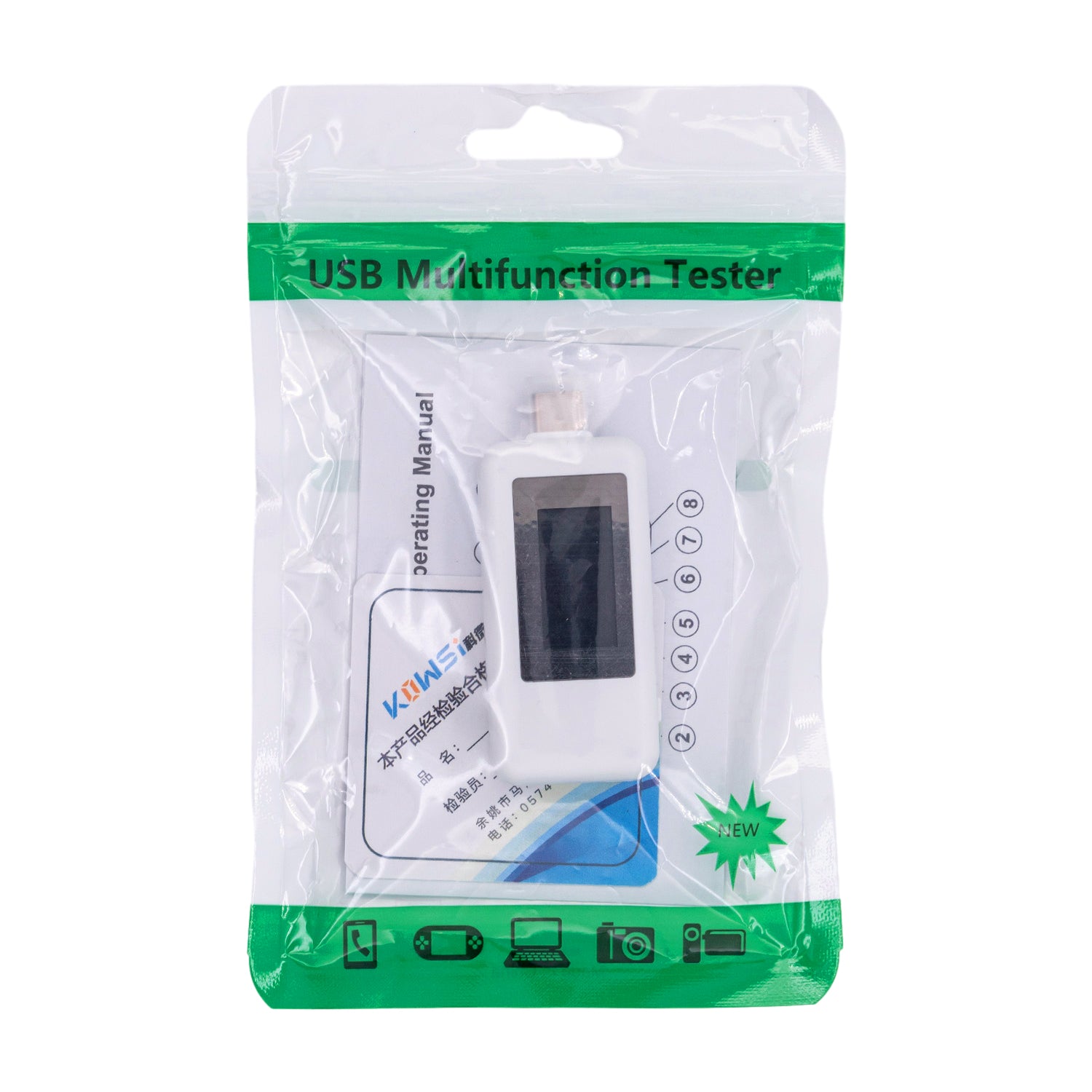

Package Included:
1 x USB-C Power Tester


Product Including Packaging Weight: 14.7g
Product Including Packaging Size: 14.2*9.1*1cm
