OSSC SCART Component VGA to HDMI Open Source Scan Converter v1.6 for Retro Gaming Console EU Plug
av-040039
Descriptions:
Play your favorite retro games using this adapter by connecting your console to one of the OSSC's inputs. The adapter will then output the signal to HDMI for connection on a modern TV with no input lag. For v1.6, it converts not only VGA, SCART and Component to DVI/HDMI, but also analogue audio to digital DVI/HDMI now! The OSSC features multiple options and modes for tweaking the image until you are happy - A variety of templates to get the best image for each console are widely available online!

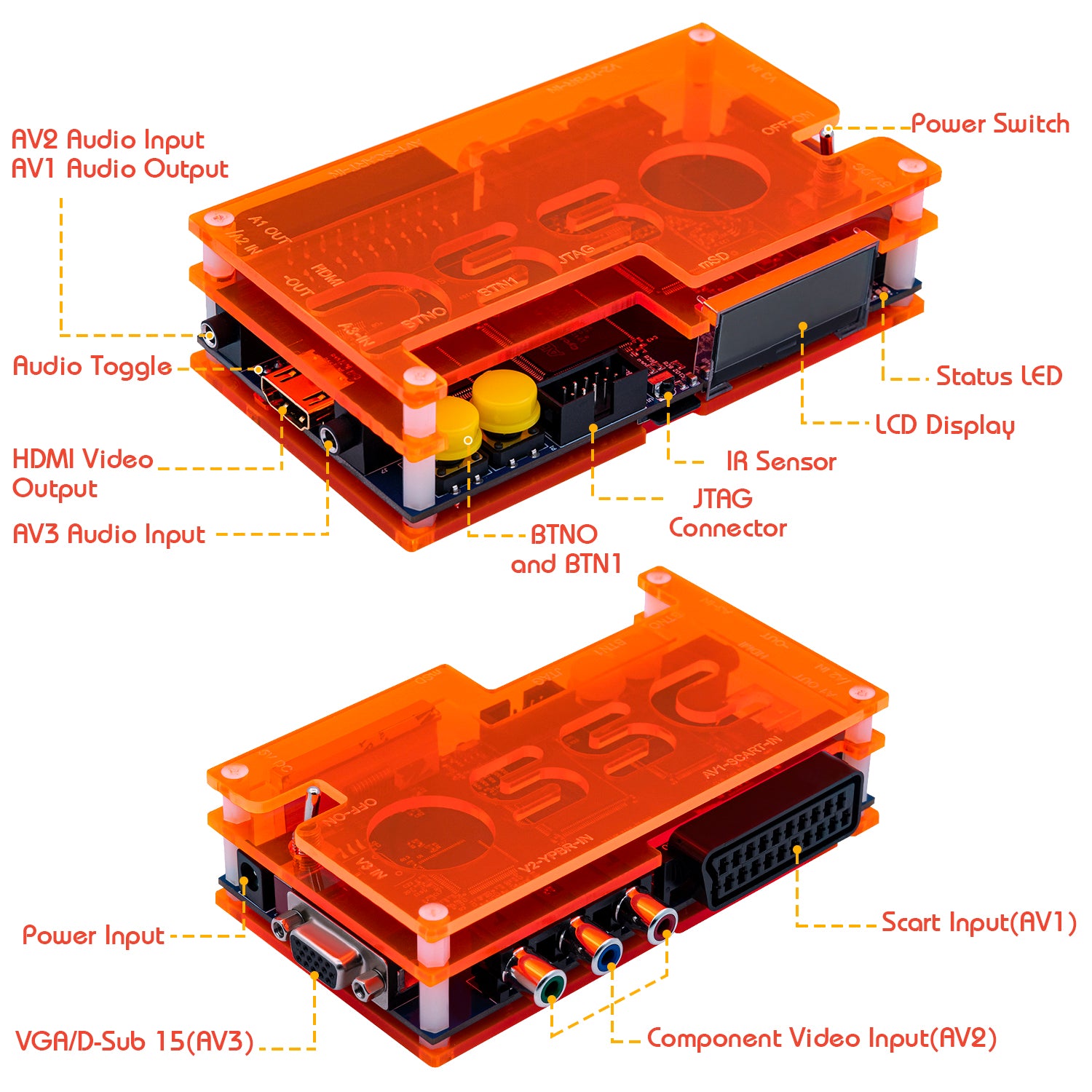

Input:
1 X SCART ????¨¬?C Supports RGBs (clean csync, cvideo sync, luma sync), RGsB, Ypbpr
1 X Component video ????¨¬?C Supports Ypbpr and RGsB signals
1 X D-SUB15 (VGA) ????¨¬?C Supports RGBHV, RGBs, RGsB, Ypbpr
2 x 3.5mm analogue audio ????¨¬?C Supports all analogue audio. Input 1 can be toggled between output (from AV1/SCART) or input
Composite video and S-Video are NOT supported and require an adapter/transcoder (NOT incl.)
Output:
1 X HDMI or DVI-D (with adapter) (digital only, including audio). Full-range 24-bit RGB output through DVI/HDMI
1 X Analogue audio 3.5mm (input/output toggle)
Supported input resolutions:
240p/288p/480i/576i 15khz
25Khz medium-res modes
480p/576p/720p/1080i 31khz
Supported output resolutions
240p/288p -> 480p/576p or 720p line triple (compatible displays only)
240p/288p -> 1280??960, 1280??1152, 1080p, 1600??1200 line quadruple/quintuple (compatible displays only)
25Khz medium-res modes -> 480p
480i/576i -> 480p/576p or pass-through
480p -> pass-through or 960p line-double (compatible displays only)
all other 31khz resolutions passed through
Other features:

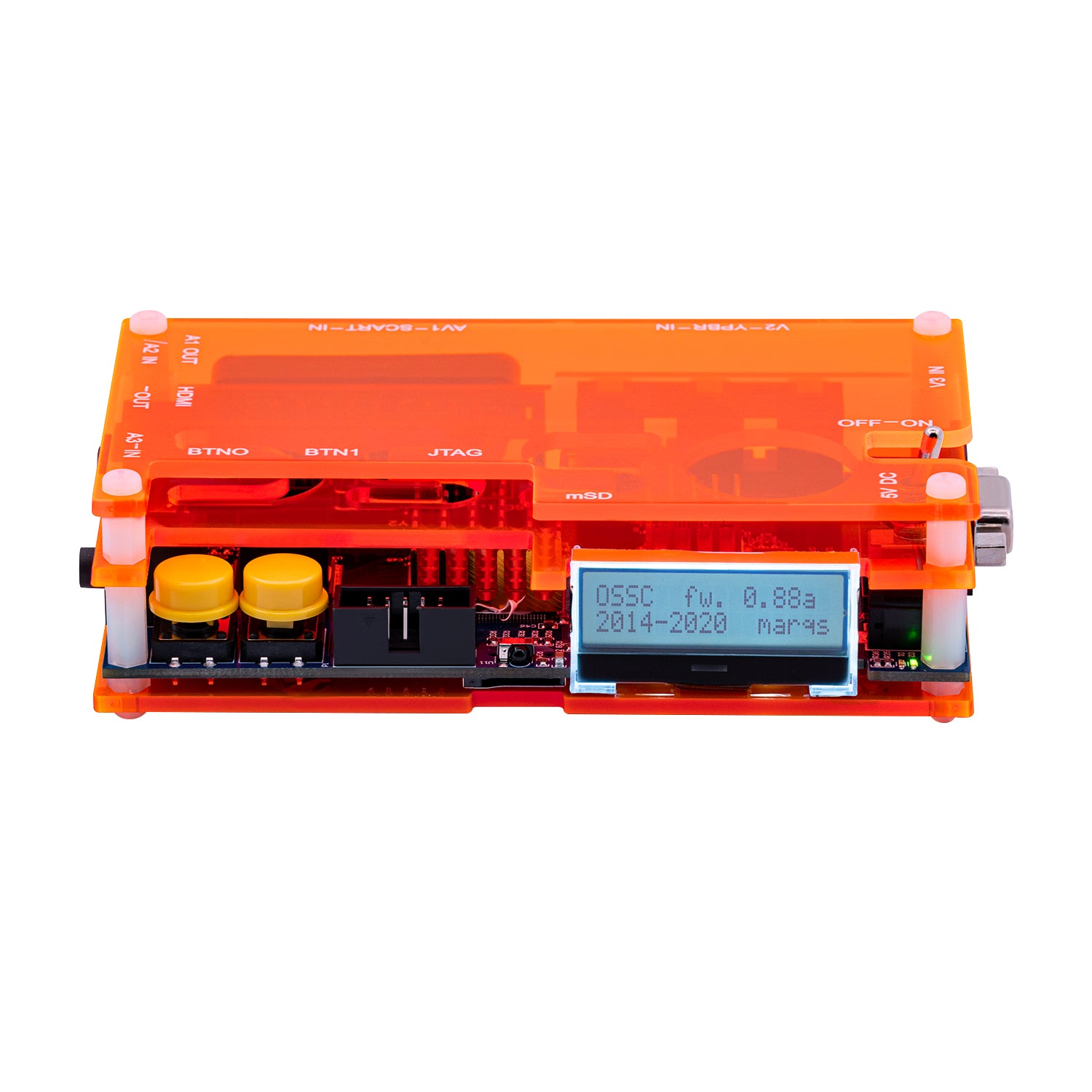

Back lit LCD
SD Card socket for firmware updates
JTAG connector
IR receiver
Power requirements:
DC 5V 1 Amp ????¨¬?C 2.1 x 5.5mm positive tip
IMPORTANT:
- DO NOT PURCHASE THIS UNLESS YOU UNDERSTAND WHAT IT DOES AND HOW IT WORKS!!!
- The remote control needs 2 AAA batteries (NOT incl.)
- Needs a suitable RGB high-quality SCART cable to work. Will only work with RGB inputs. NOT work with converted/split cable connection.
- JP21 adapter is required for JP21 RGB Cables.
- Will NOT work with Nintendo N64, Non-RGB modded Nintendo NES, or a NTSC Gamecube as these are both S-Video and NOT RGB.
- Works on all other retro consoles from Spectrum, Amiga, SNES, Gamecube (PAL), Saturn, Mega Drive to PlayStation and more.

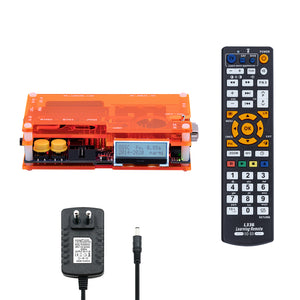

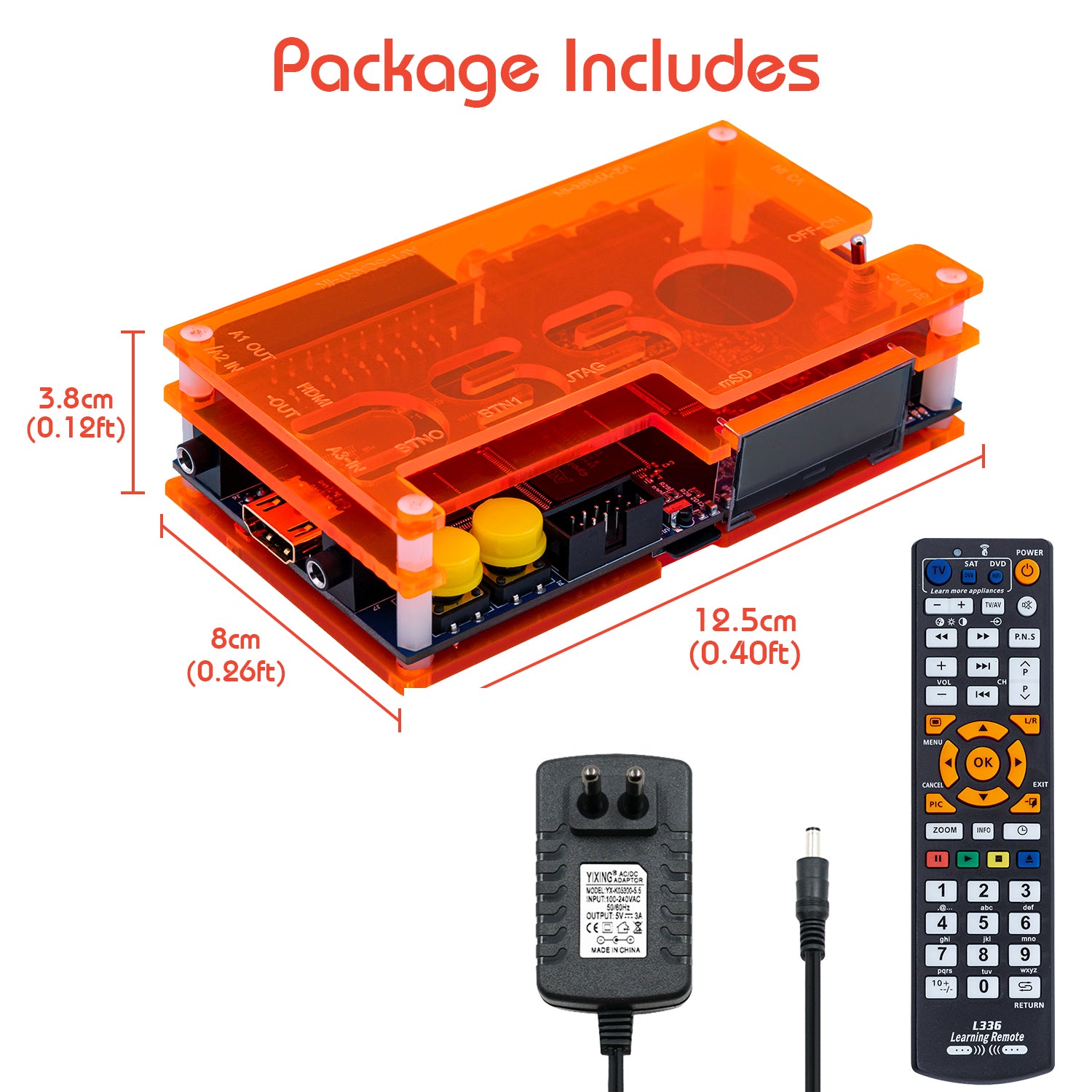

Package Includes:
1 x Open Source Scan Converter
1 x Remote Control
1 x Power Supply (EU Plug)
1 x User Manual
Product Including Packaging Weight: 482g
Product Including Packaging Size: 24*17.3*7cm
