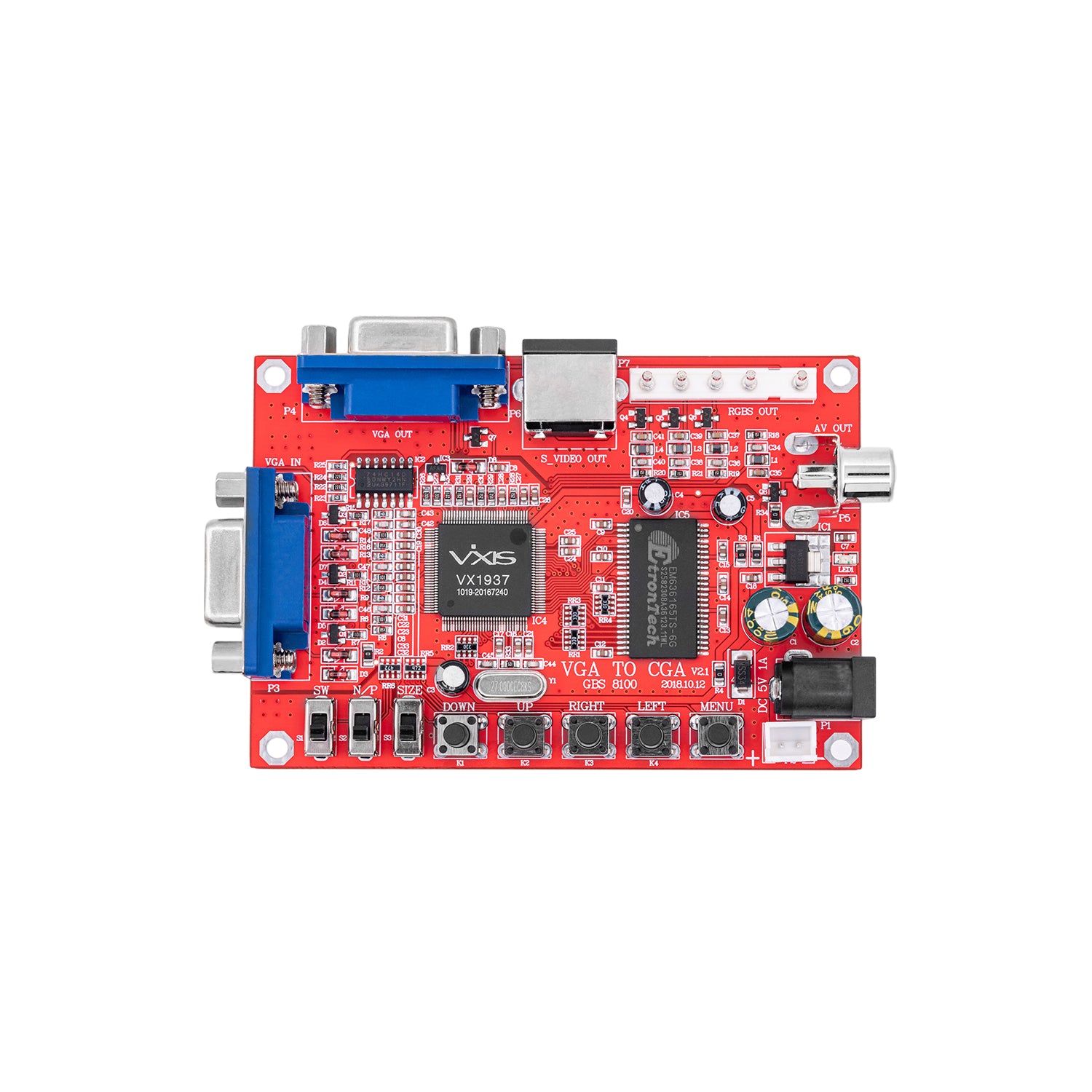

Arcade Game VGA to CGA/CVBS/S-VIDEO Video Converter Board
av-040020Description
Description:

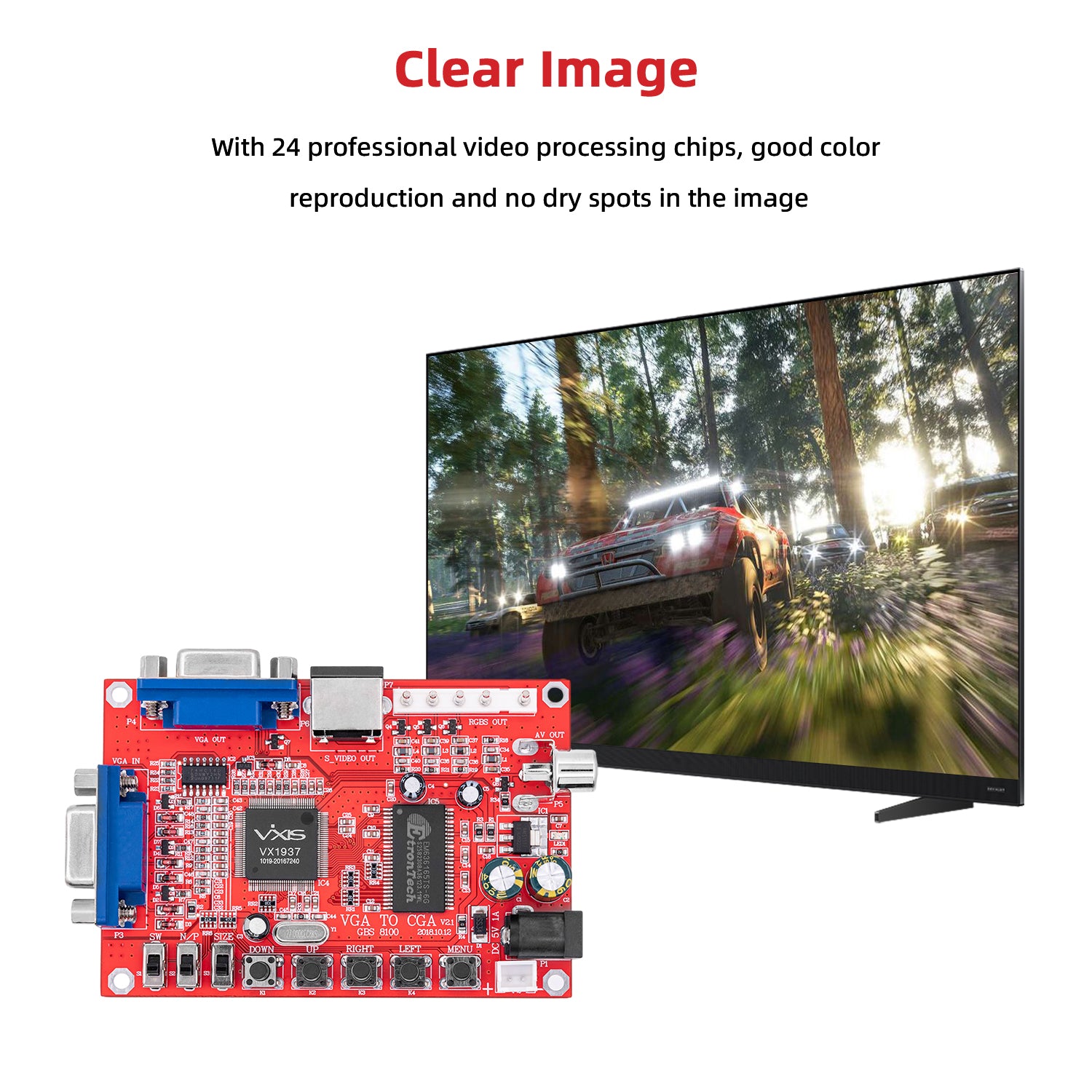

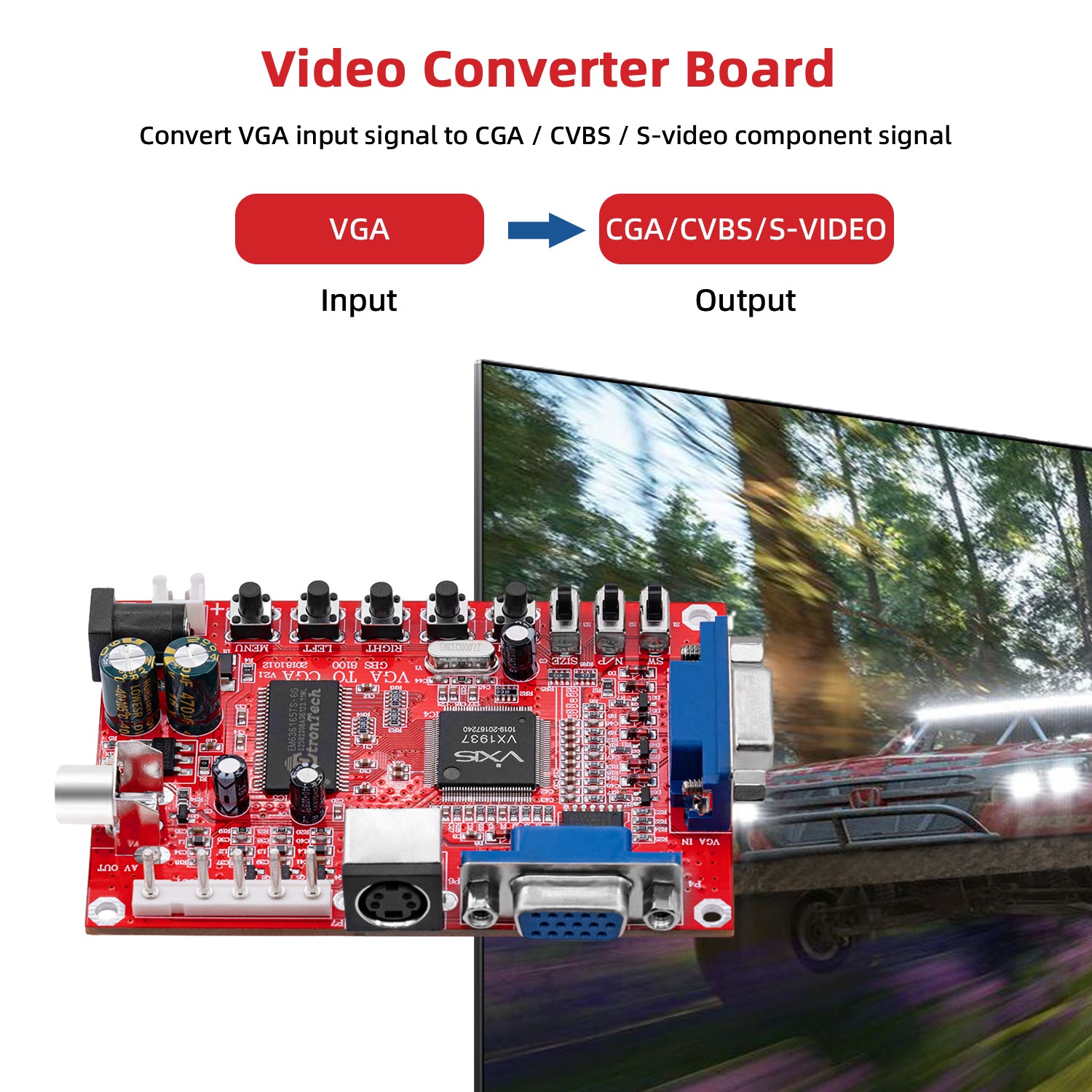

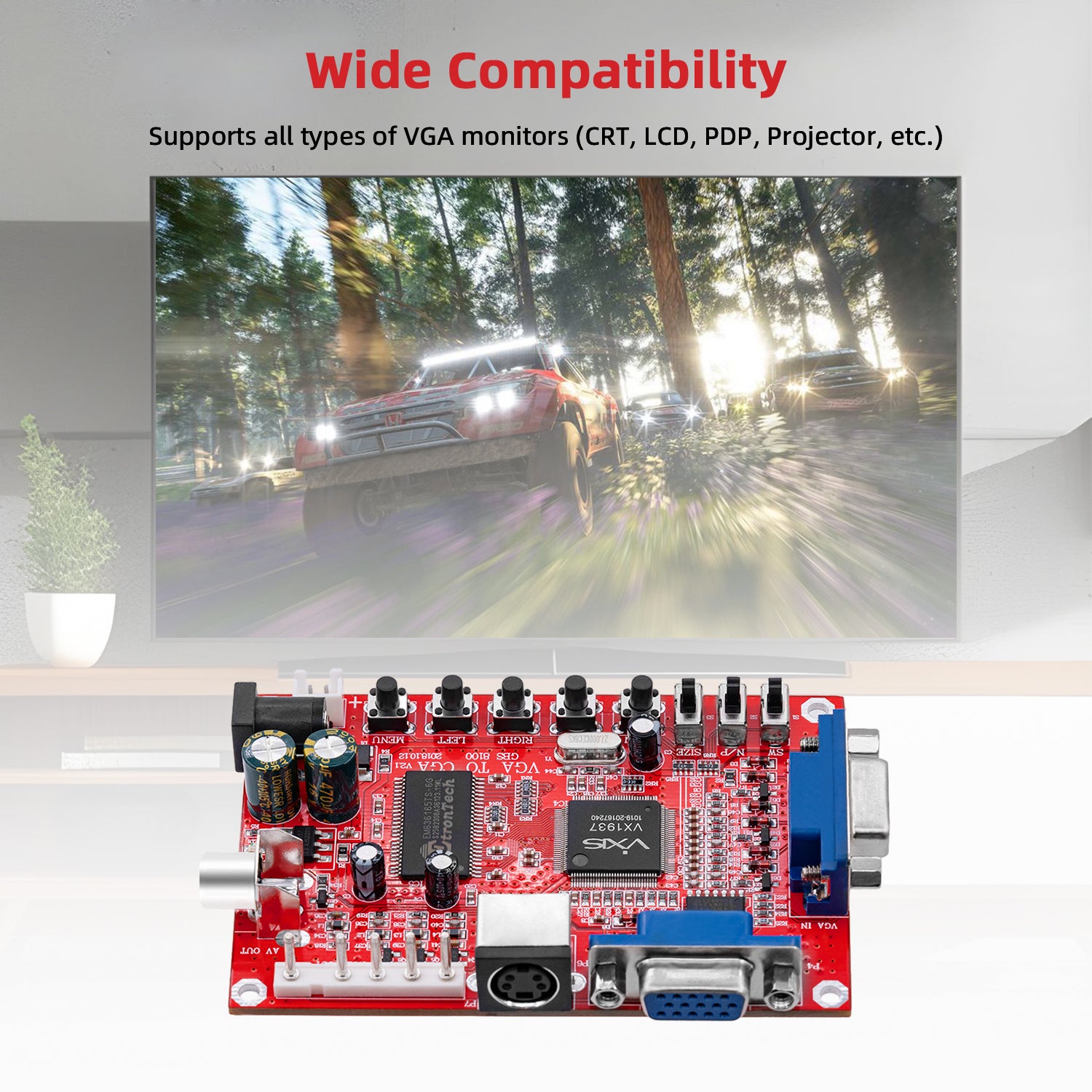

The high definition GBS-8100 Video Converter Board is a professional game converter, which is specially designed for game industry. And, it can convert VGA input signal to CGA / / CVBS / S-VIDEO component signal. After connected, it will play the VGA games (High resolution Arcade Game or PC games) on big-screen HD Monitors (CGA CRT Monitor, LCD Monitor PDP Monitor) It will bring you much fun and convenience.
Features:
- Supports VGA/SVGA/XGA/SXGA(640*480,800*600,1024*768,1280*1024) signal input.
- Supports VGA output by pass.
- CGA signal output(15K).
- Video/S-Video output.
- Supports NTSC and PAL.
- Supports position control and zoom control.
- True digital 24-bit A/D converter for true 16.7-million color conversion
- English OSD Adjust menu
Specification:
Model Number: GBS-8100
Input Power: DC 5V ??0.5V (2A) P1 or P2

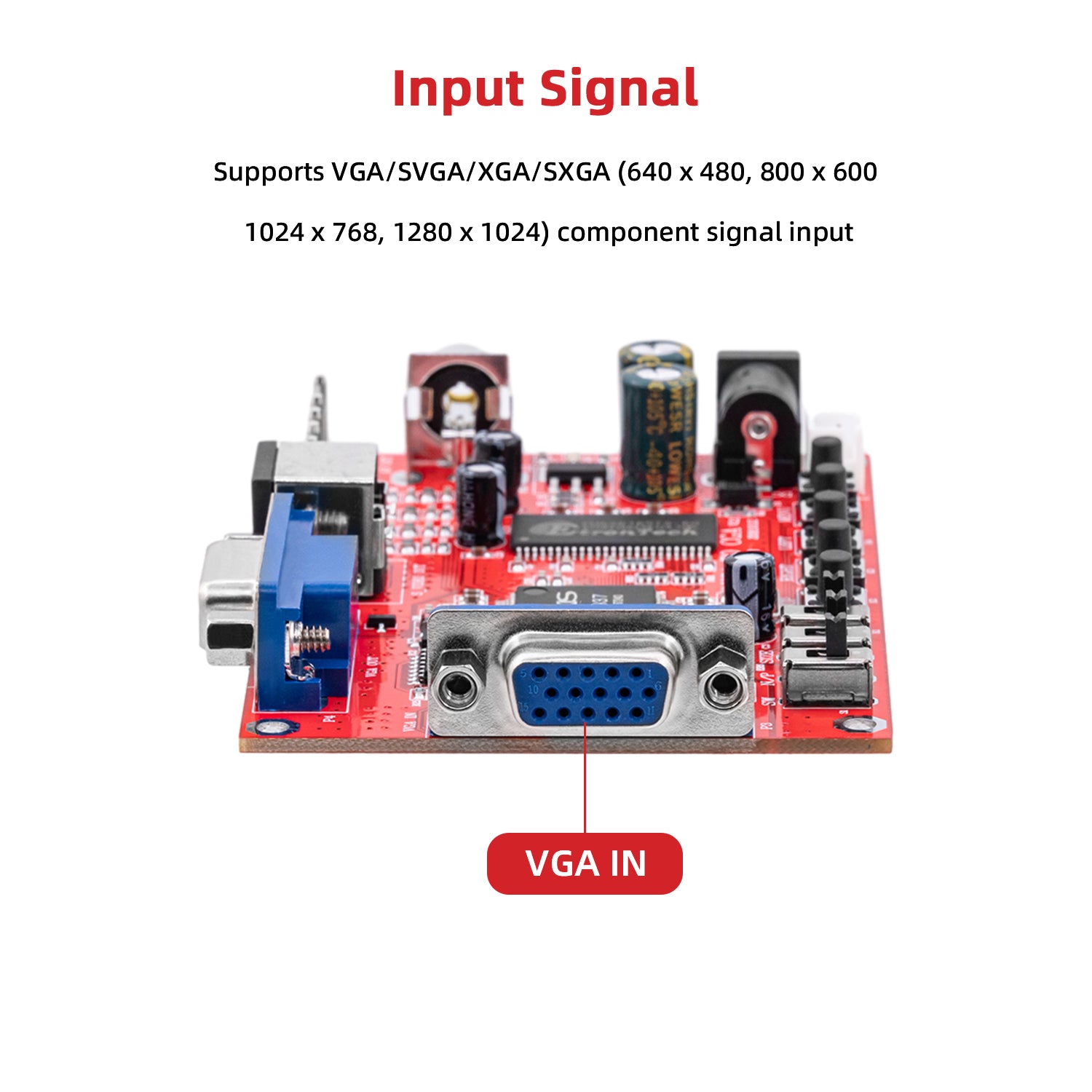

Input signal:
640 * 480 @ 60 / 72 / 75 80 / 85 Hz, 800 * 600 @ 60 / 72 / 75 80 / 85 Hz, 1024 * 768 @ 60 / 72 / 75 80Hz, 1280 * 1024 @ 60 / 72 / 75 Hz (Auto scan) P3

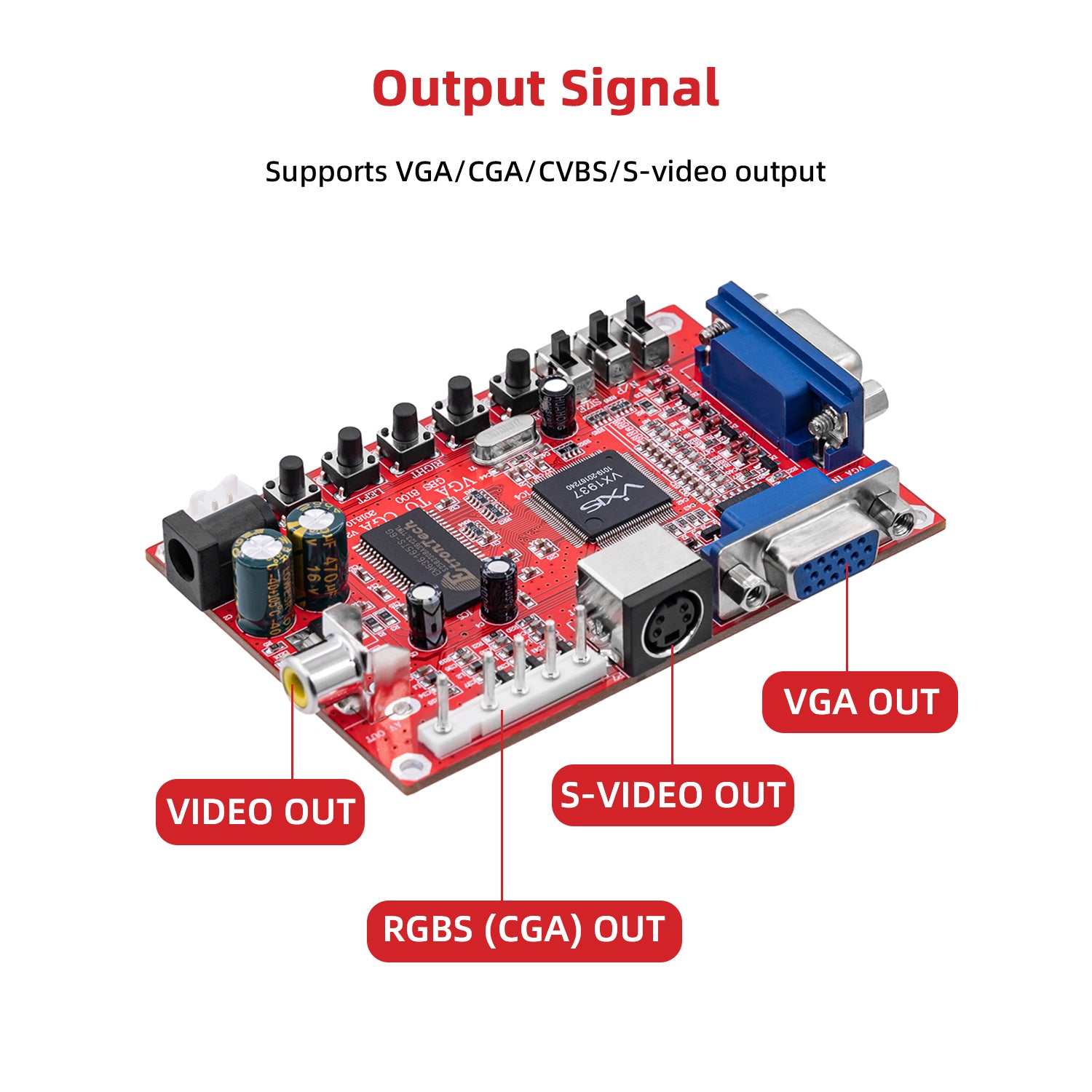

Output Signal:
CGA: 640 * 480 P7
VGA: By Pass P4
Video: 480p NTSC and PAL P5
S-Video: 480p NTSC and PAL P6
User controls (Menu Keys): Output Switch, Image Zoom, Image Position, Output adjust.
Color: Red
Main item size: 10.0 * 6.5 * 1.6 cm / 3.94 * 2.56 * 0.63in
Package Weight: 51g / 1.8oz
Package size: 20.0 * 10.0 * 3.0 cm / 7.87 * 3.94 * 1.18in
Package weight: 107g
MENU CONTROL:
"MENU" open / close OSD menu.
"UP" up move.
"DOWN/AUTO" down move.
"LEFT" add.
"RIGHT" less
For more functions control, please refer to OSD to operate.
S2 to switch NTSC and PAL, output, S1 to switch S-Video / CGA output.

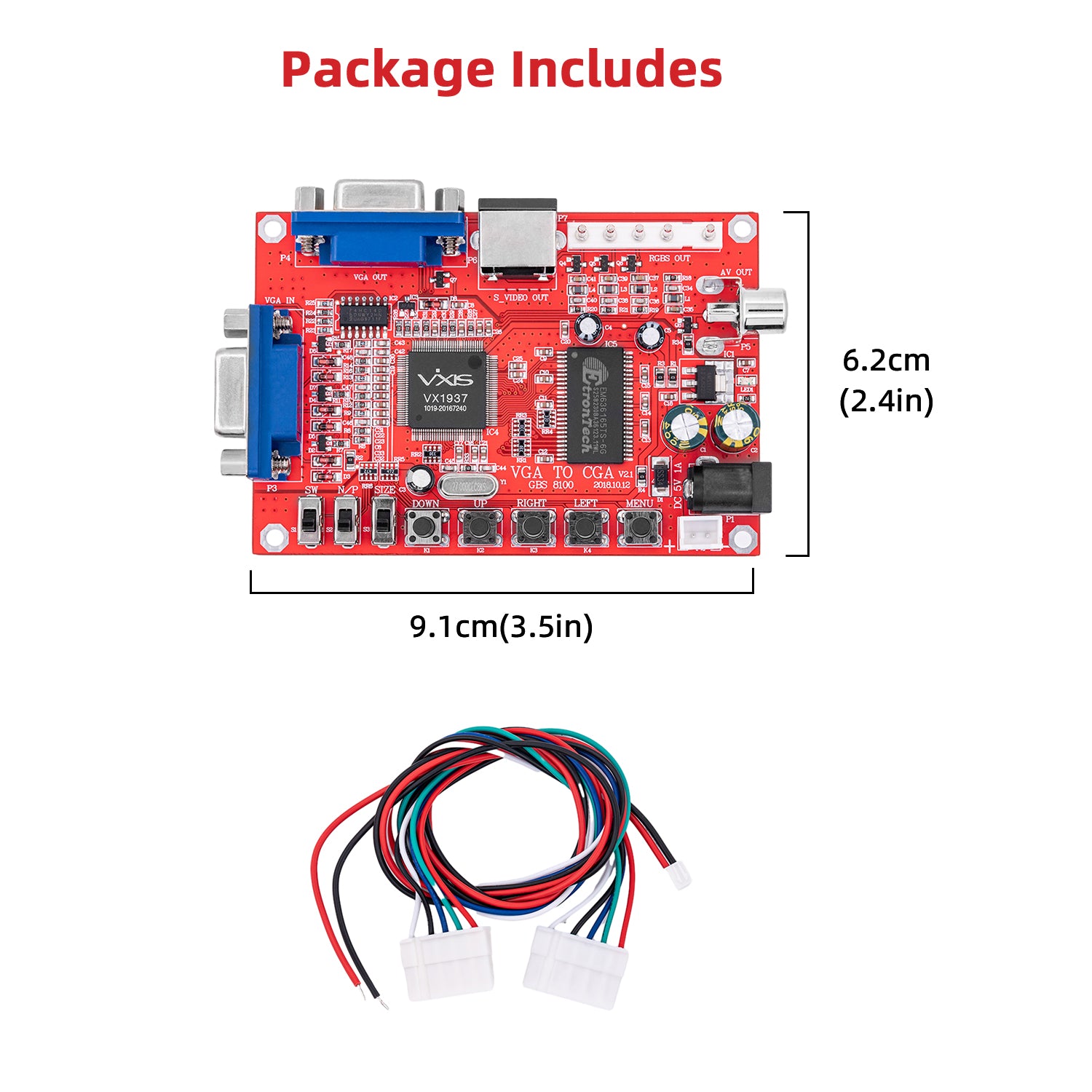

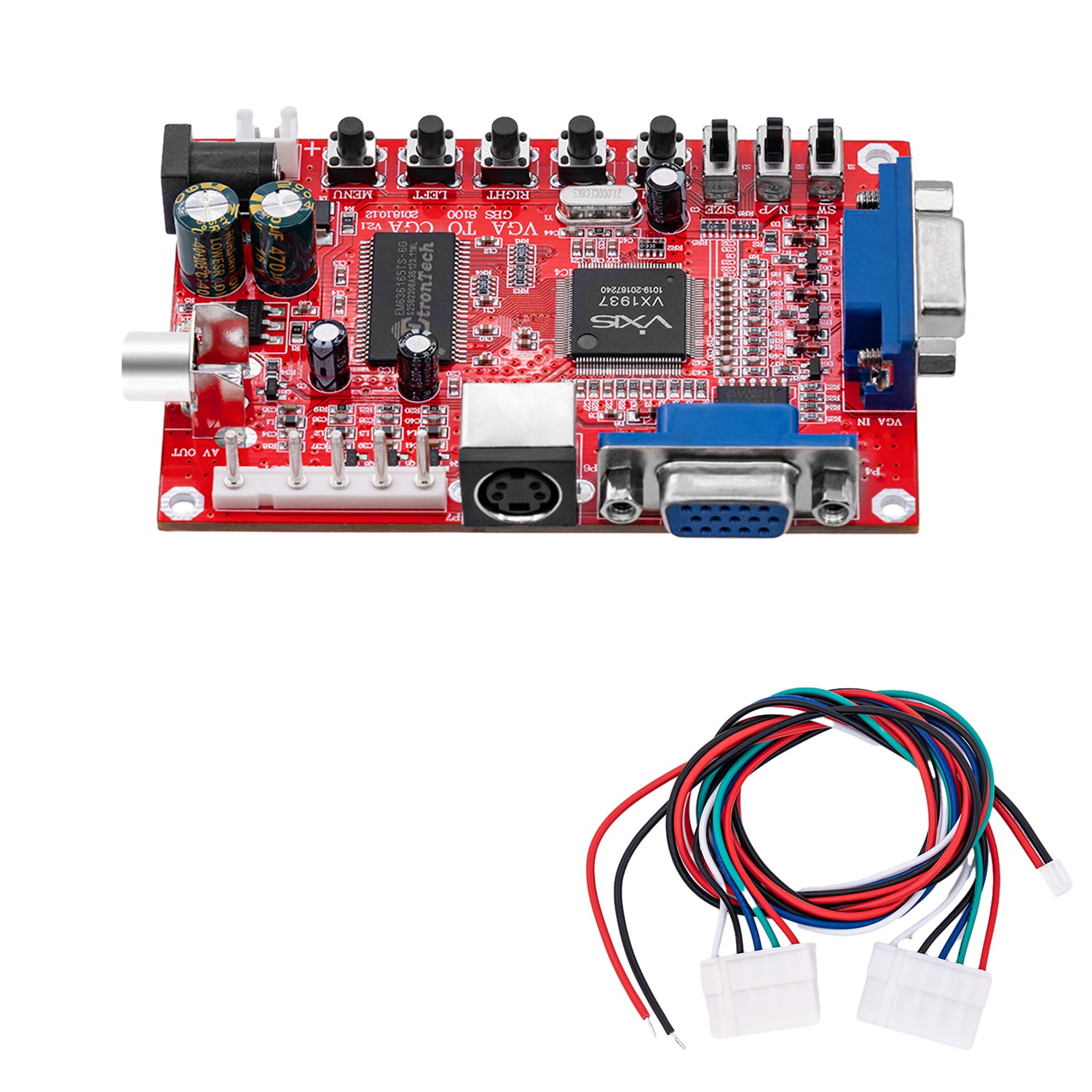

Packing Includes:
