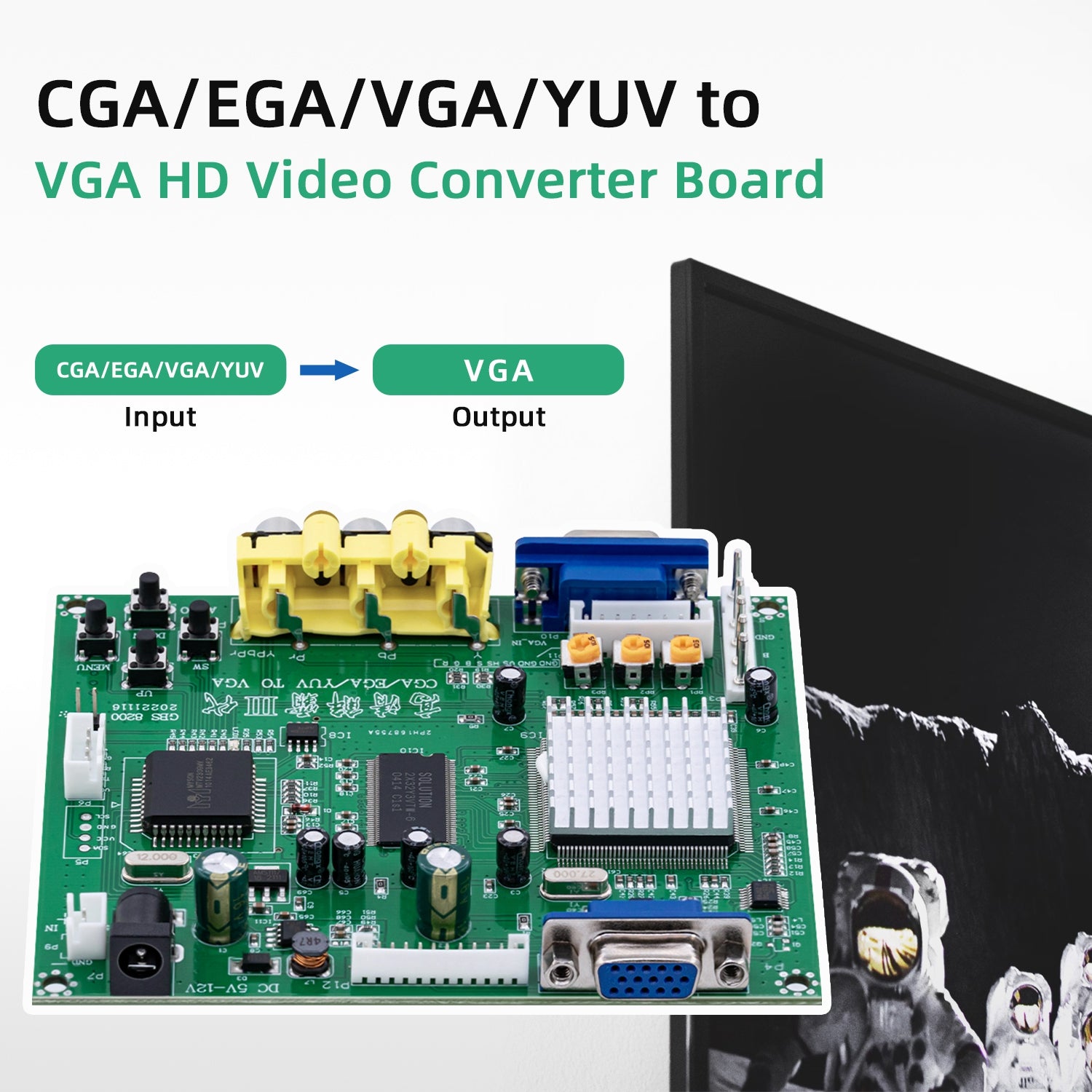

Arcade Game RGB/CGA/EGA to VGA HD Video Converter Board
av-040019Description
Description:- Power Supply Input: DC 5V/2A

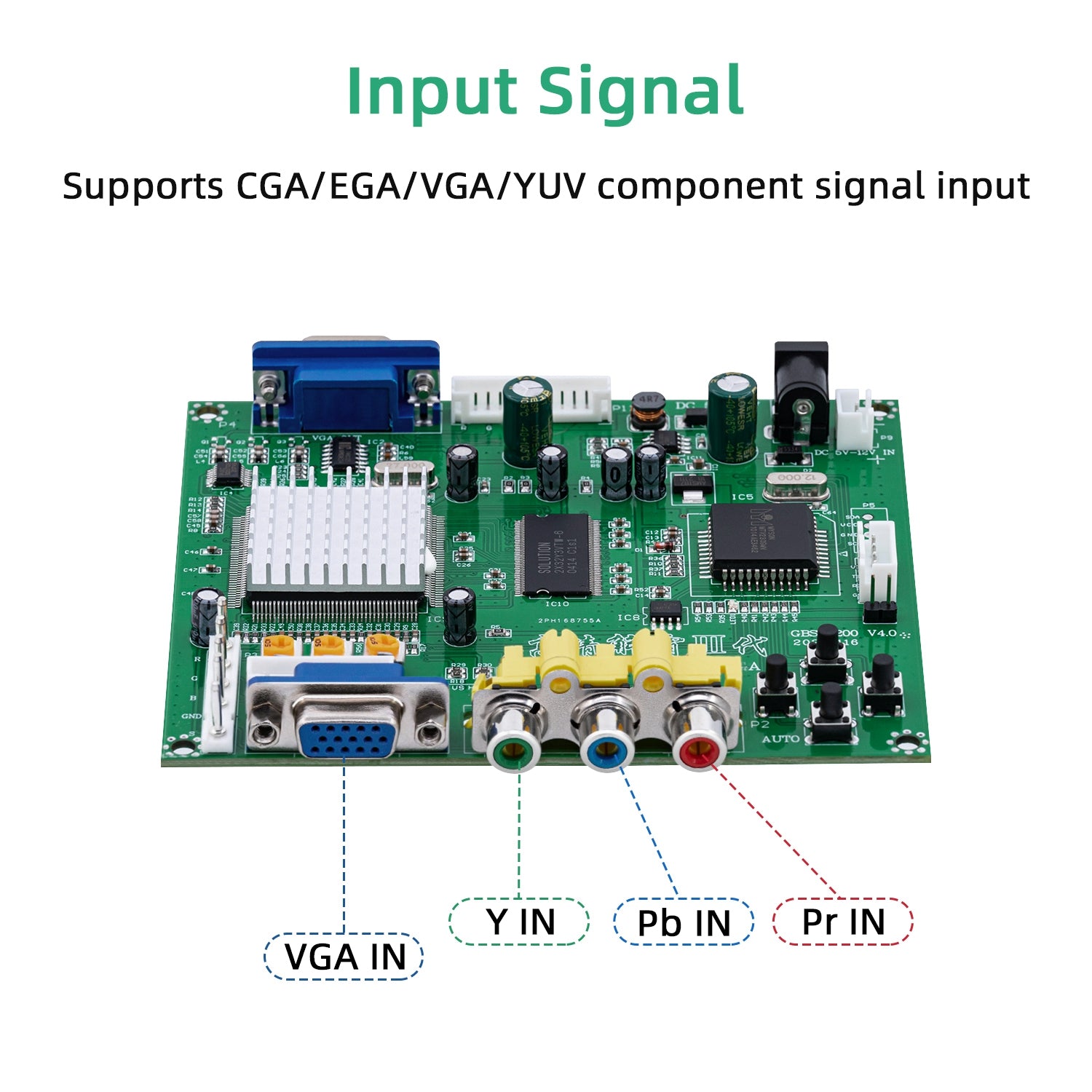

- Input Signal Format: RGBS, RGBHV, YPbPr
- Input RGBS Format: 15kHz, 24kHz, 31kHz horizontal frequency signal automatic scanning
- Input RGBHV Format: 31k horizontal frequency signal
- Input YPbPr Format: 480i-60, 576i-50, 1080i-50, 1080i-60, 480p-60, 576p-60, 720p-50, 720p-60, 1080p-50, 1080p-60 automatic identification

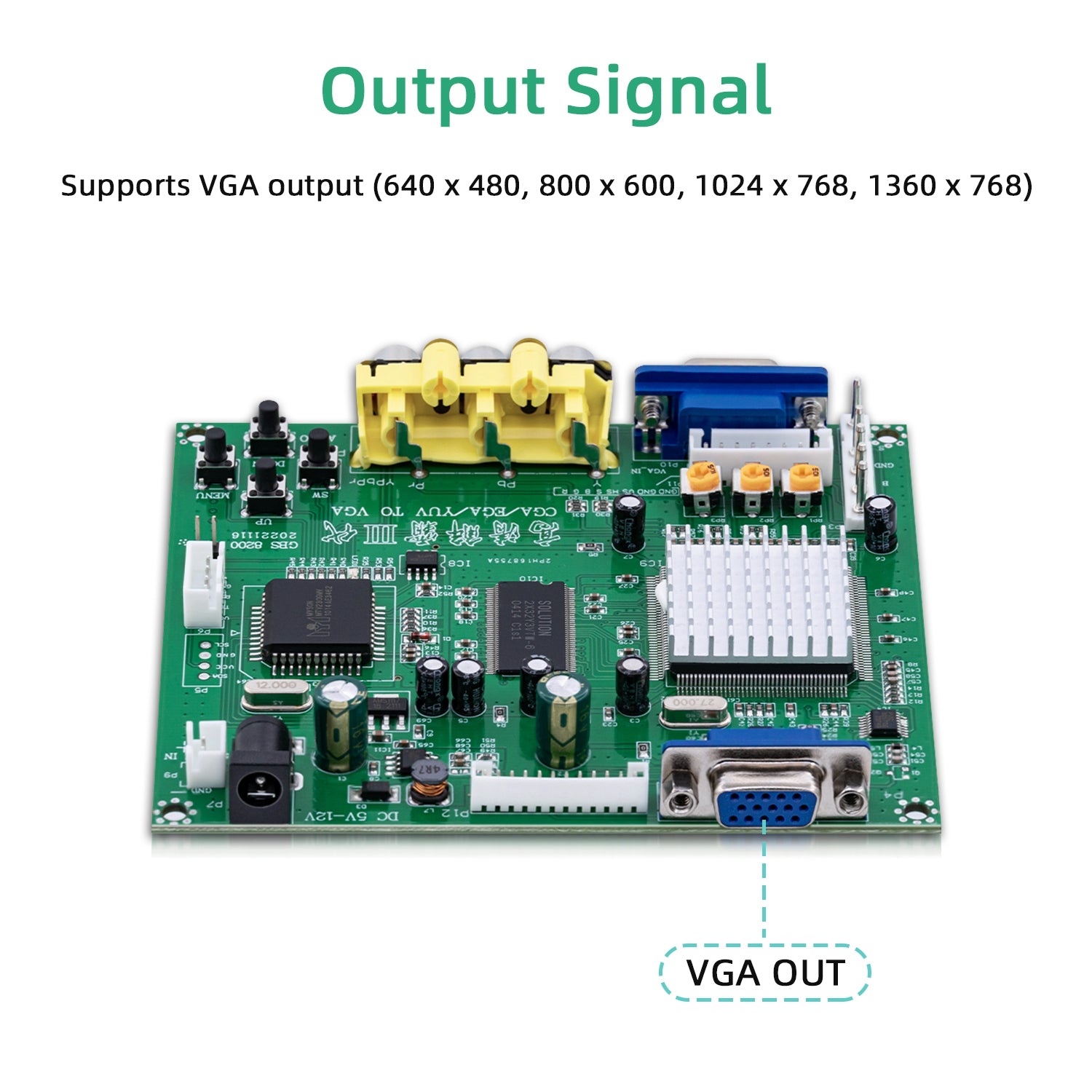

- Output signal: VGA: 640 * 480,800 * 600,1024 * 768,1360 * 768
- True digital 24-bit A / D converter for real 16.7 million color conversion.

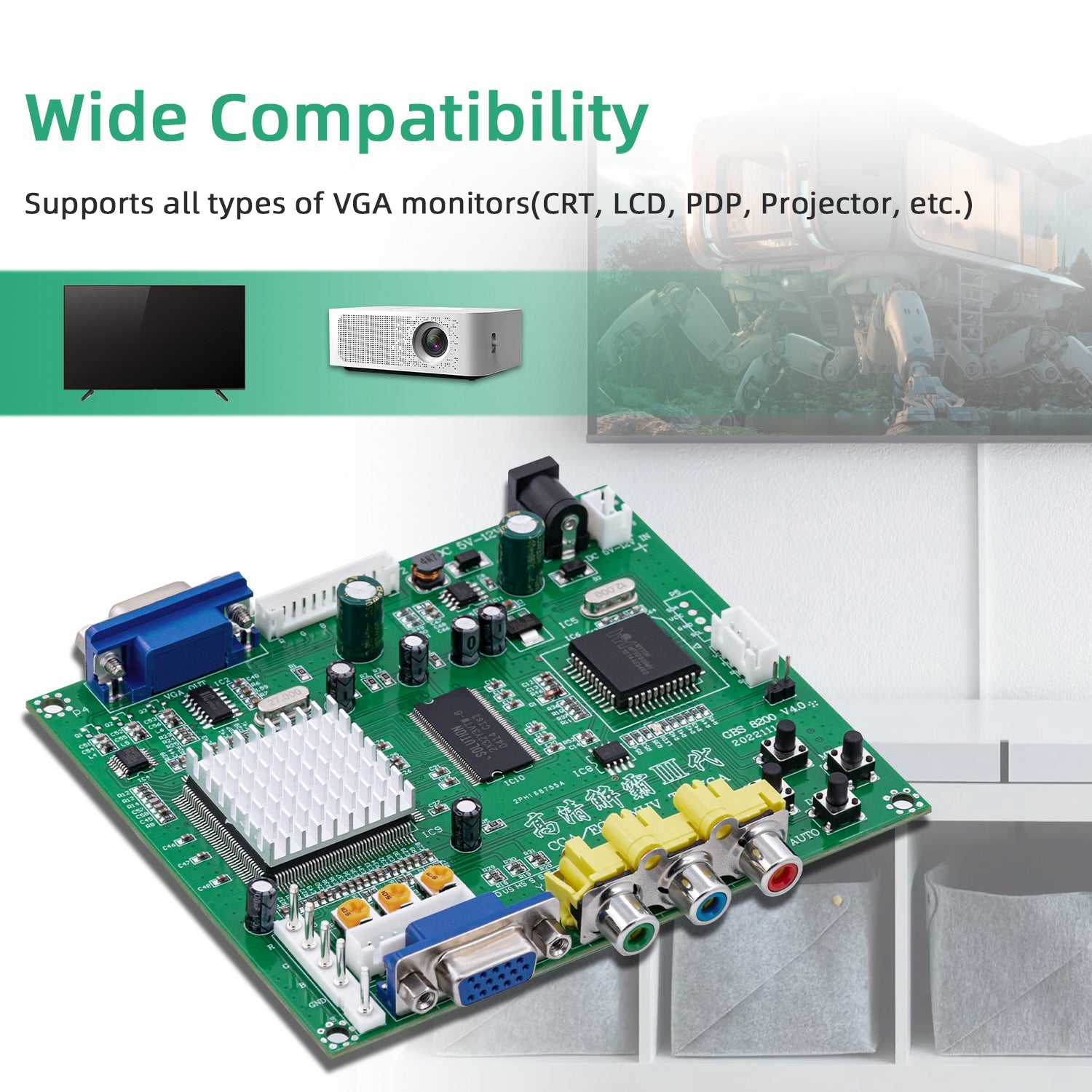

- Supports ALL types of VGA monitors (CRT, LCD, PDP, projector, etc.)
MENU CONTROL
- ???MENU??? open OSD menu, and enter.
- ???UP??? up and increase.
- ???DOWN/AUTO??? down and reduce.
-Press this key: auto scan CGA/EGA signal
-Press this key over 5 second and release: reset system
(this operation is invalid when you open OSD menu)
- ???SW??? switch input signal Ypbpr/RGBS/RGBHV.
(this operation is invalid when you open OSD menu)
-???Clamp sp??? and ???Clamp??? please don??t adjust this button, except the monitor has black item or picture discoloration.
- For more functions control, please look at OSD to operate.
NOTE: Soldering required. Installation manual is NOT included.

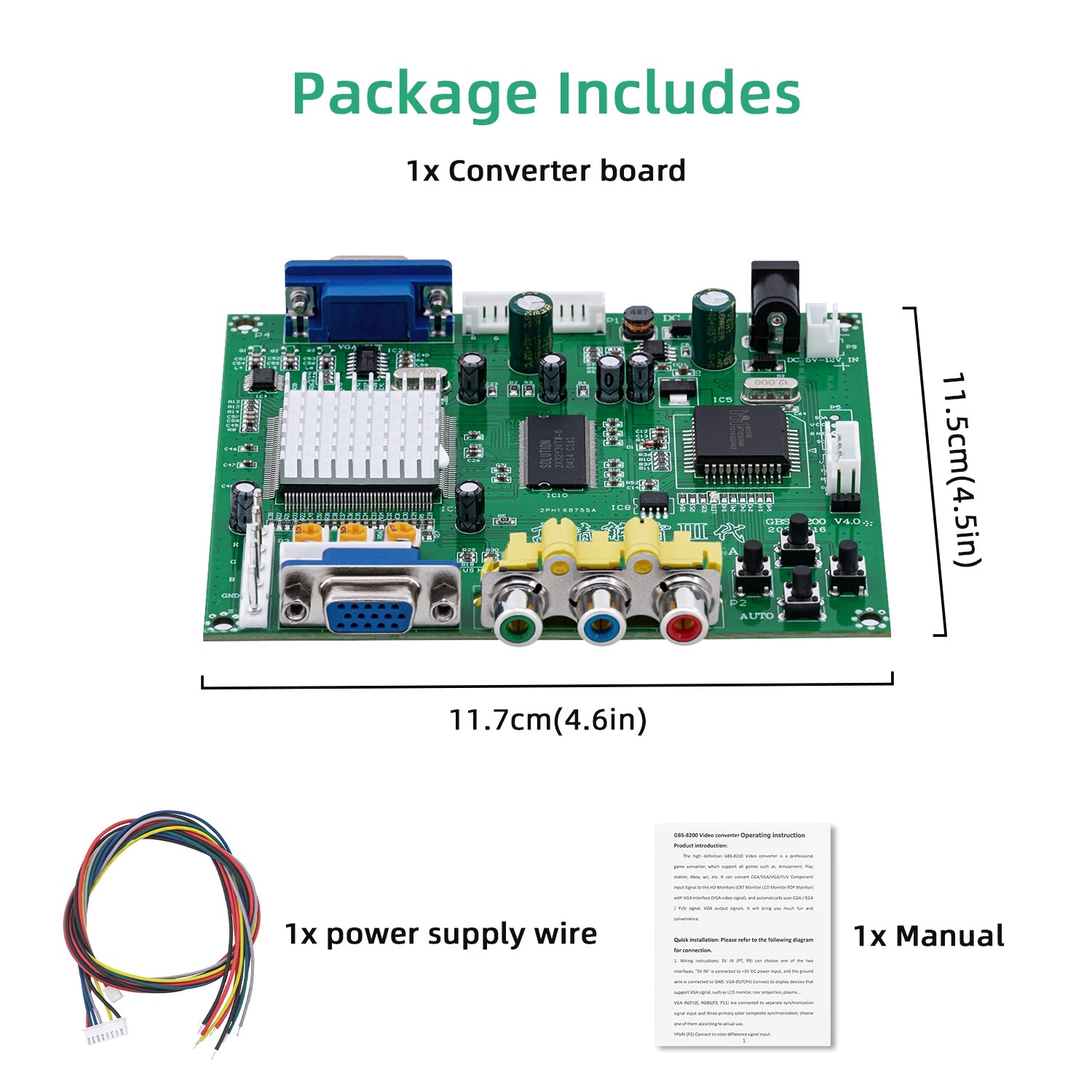

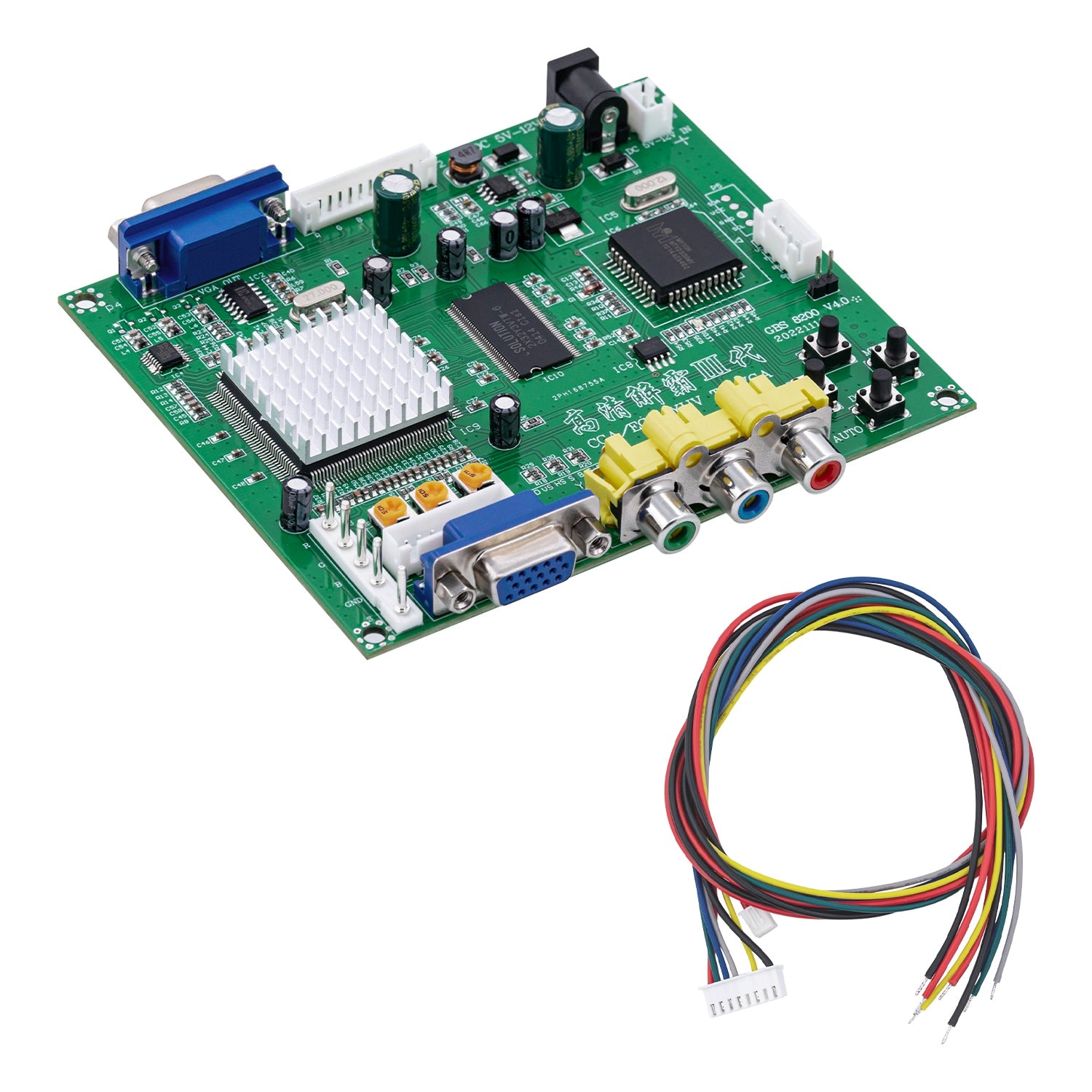

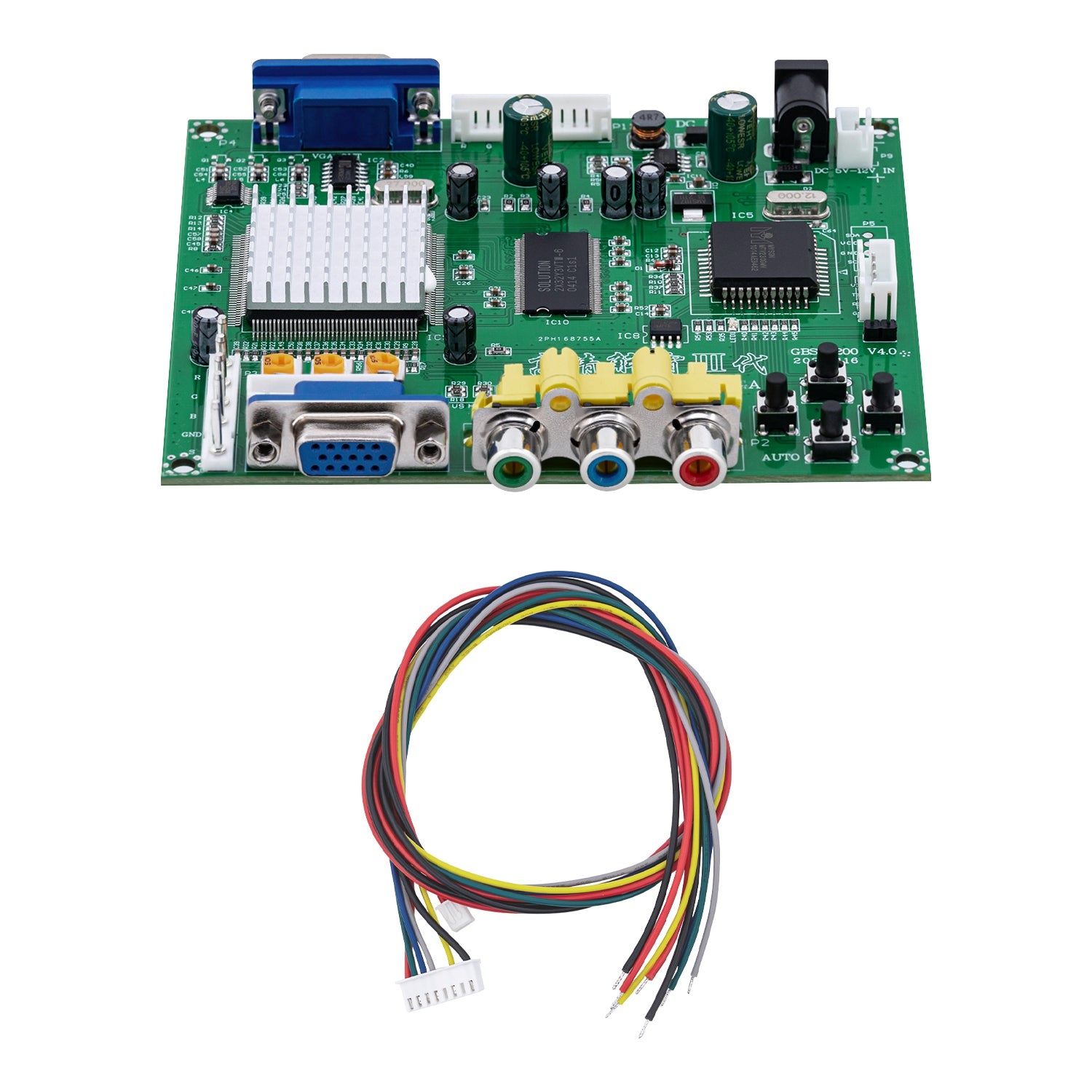

Package Includes:
1 x Converter board
1 x power supply wire
