1080P HDMI 2x2 Video Wall Controller - US Plug(NK-BT44)
av-040054
Descriptions:

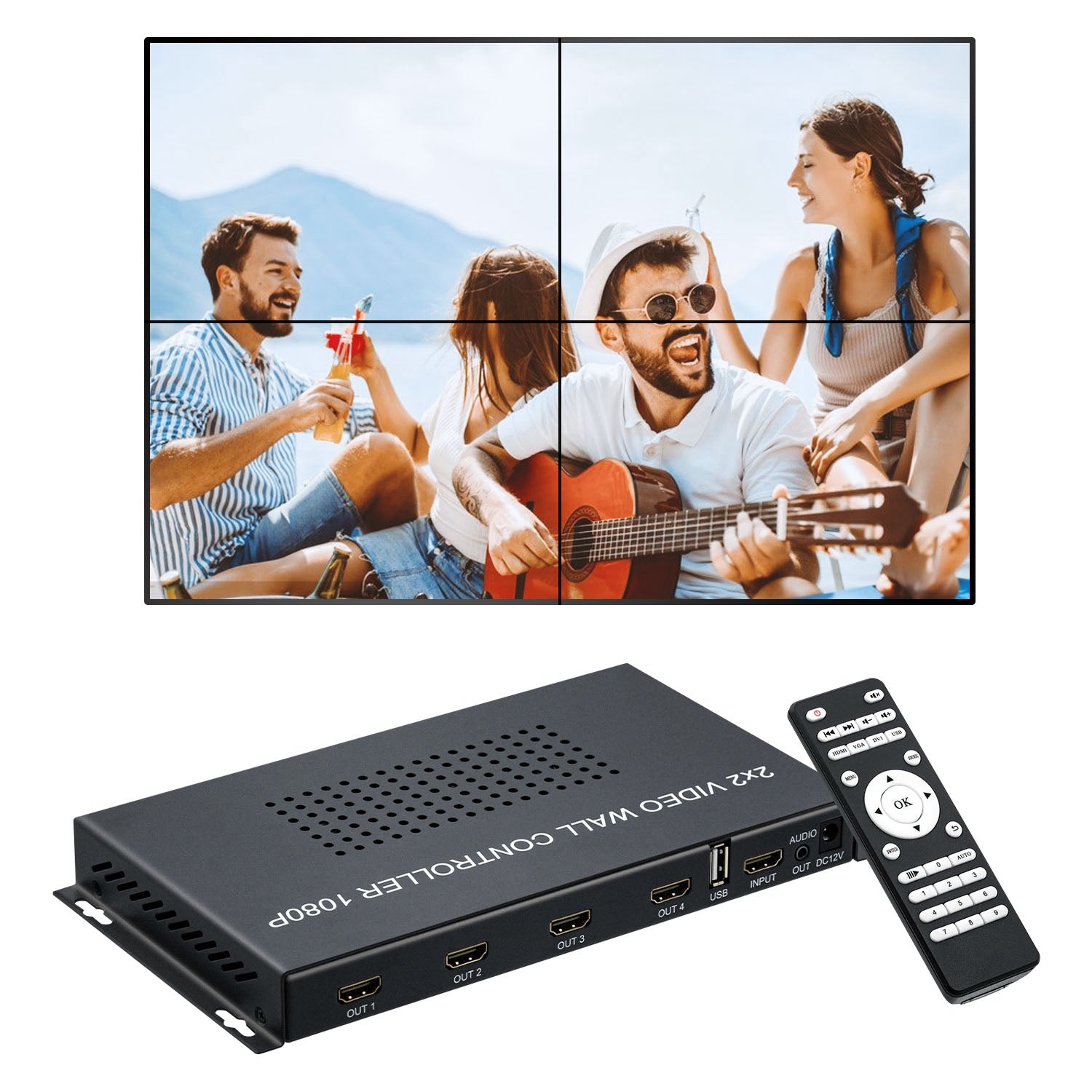

The 2x2 video wall controller supports one HDMI input to 4 HDMI output, dividing a complete HDMI HD image signal into 4 blocks, assigning to 4 video display units (such as Rear projection unit, LCD TV, etc.) and forming a large dynamic image screen. Easy to install and support remote control.
- Distributes one HDMI input device (computer, laptop, DVD player, console etc.) on 4 screens simultaneously.
- 8 Display Modes - 4x1, 3x1, 2x1, 2x2, 1x4, 1x3, 1x2, 1x1
- Support 180 degree rotation
- Come with audio output, making it more convenient and efficient to experience your favorite media.
- With USB interface. Insert the USB flash disk with embedded audio then it can play videos, pictures, TXT, documents and MP3 in the USB flash disk.
- Support buttons and remote control.
- Heat dissipation holes on side. Easy heat dissipation and long service life.
- Plug and play. No Driver Installation. NOTE: HDMI cables are NOT included.
Specifications:
- Input: HDMI x 1; Output: HDMI x 4
- HDMI version: HDMI1.3
- Support Input Video Resolution 1920x1080P 24/30/50/60HZ or lower
- Support Output Video Resolution 1920x1080P 60Hz (1080P60)
- Supported Audio Formats: PCM 2.0 (NOT support Dolby Digital and DTS)
- Power Input: AC 100V-240V
- Power Output: DC 12V 2A
- Product Size: 34 x 12.5 x 4.5cm.
How to Operate:
1. Connect HDMI source to HDMI input with HDMI cable. Connect HDMI output to TVs.
2. Connect 12V power adaptor.
3. Set up splicing mode by the MENU button on the unit or remote controller.
Package includes:
1 x 2x2 Video Wall Controller
1 x IR Remote Control (Battery NOT included)
1 x AC Power Adapter
1 x User Manual
Product Including Packaging Weight: 1000g
Product Including Packaging Size: 26.5*18.5*5.5cm
